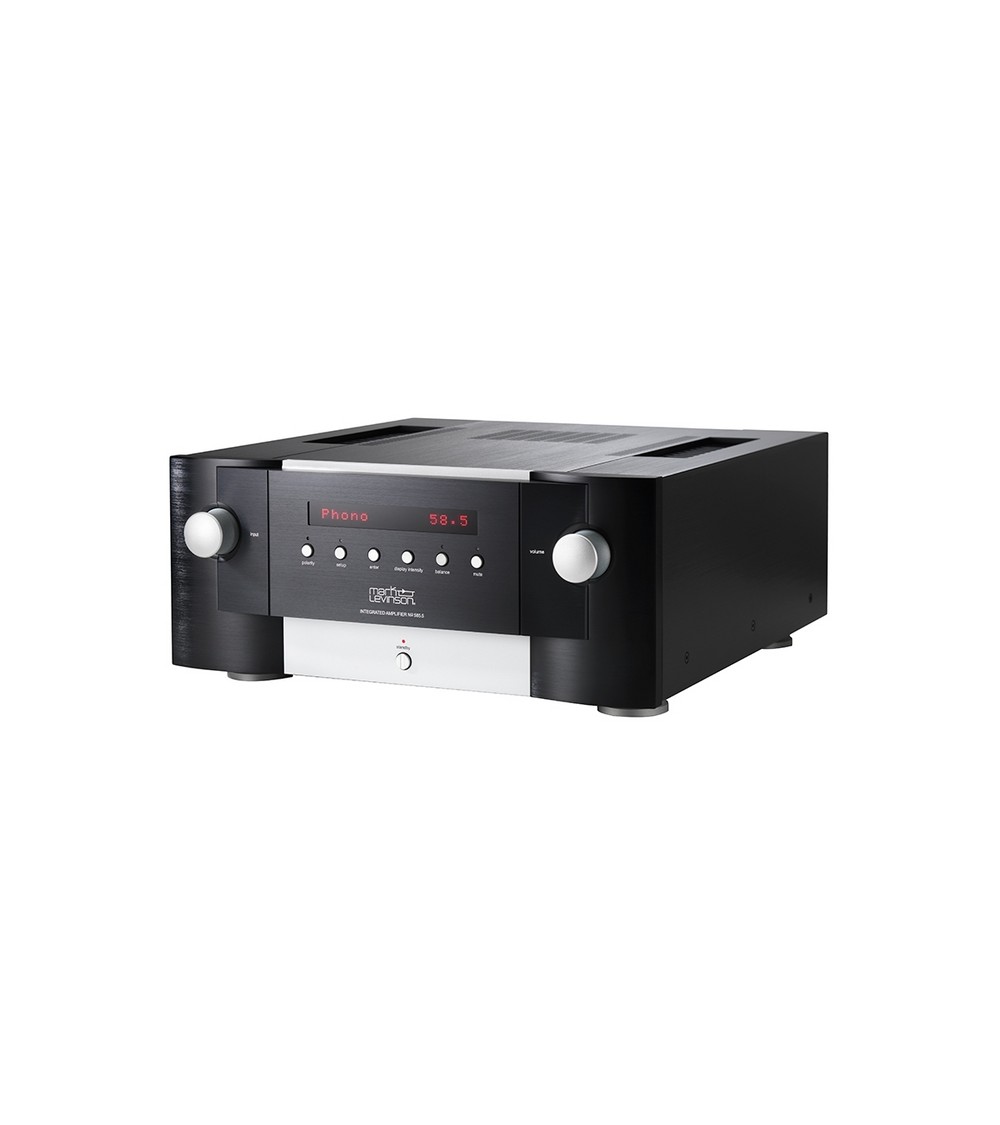

MARK LEVINSON N° 585.5

Amplificatore integrato in classe A/B. Potenza 2x200W su 8ohm, 2x350W su 4ohm. Stadio di preamplificazione Phono in classe A. Convertitore D/A 32bit/192KHz. DSD 11.2MHz. MQA. Ingressi analogici: 1 bilanciato XLR stereo, 3 RCA stereo e 1 RCA Phono MM/MC. Ingressi digitali: USB, AES/EBU, 2 coassiale, 2 ottici, Bluetooth aptX HD. Uscita analogica: RCA stereo con selezione crossover 80Hz. HT pass-thru. Uscita cuffia da 6,3mm. Controllo I/P Ethernet, USB e RS-232. IR e 12V trigger I/O. Trasformatore toroidale da 500VA. Telecomando in alluminio. Dimensioni (LxAxP): 43,4x19,3x50,6cm. Peso: 34Kg.

Highlights
Pure Path Phono preamp — a discrete design with no op-amps and operates exclusively in class A throughout
High resolution sound from class-A/B amps
Fixed-gain moving magnet (MM) section with 5 capacitive cartridge-loading settings
Discrete analog circuitry throughout
Moving coil (MC) section with three gain settings and 10 resistive cartridge-loading settings
Ultrasonic filter intelligently compensates for rumble and warping
32-bit/192khz performance, including DSD over PCM via USB 80Hz high-pass option allows proper operation of a 2.1-channel system
Designed and handcrafted in the USA
Inputs
6 digital inputs: USB, AES/EBU, S/PDIF
4 analog inputs
Control
Ethernet, RS-232, IR and 12V trigger ports
Mark Levinson extruded aluminum remote
Amplification
200W at 8 ohms; 300-350W at 4 ohms


()
